METAL FORMING OILS AND PASTE

a) ECO Draw Oil 68 & 220

For Medium metal drawing operation. Suitable for Ferrous metals.Drawing oil is a lubricant used in metalworking operations to reduce friction and increase die life. It can be used for deep drawing, cold drawing, and hot extrusion.

Parameter Test Method Test Results
68           220
Color NA Golden yellow
Viscosity Index, Min ASTM D2270 95 95
Flash Point (COC), °C,Min ASTM D92 190 220
Rust Test ASTM D665 Pass Pass

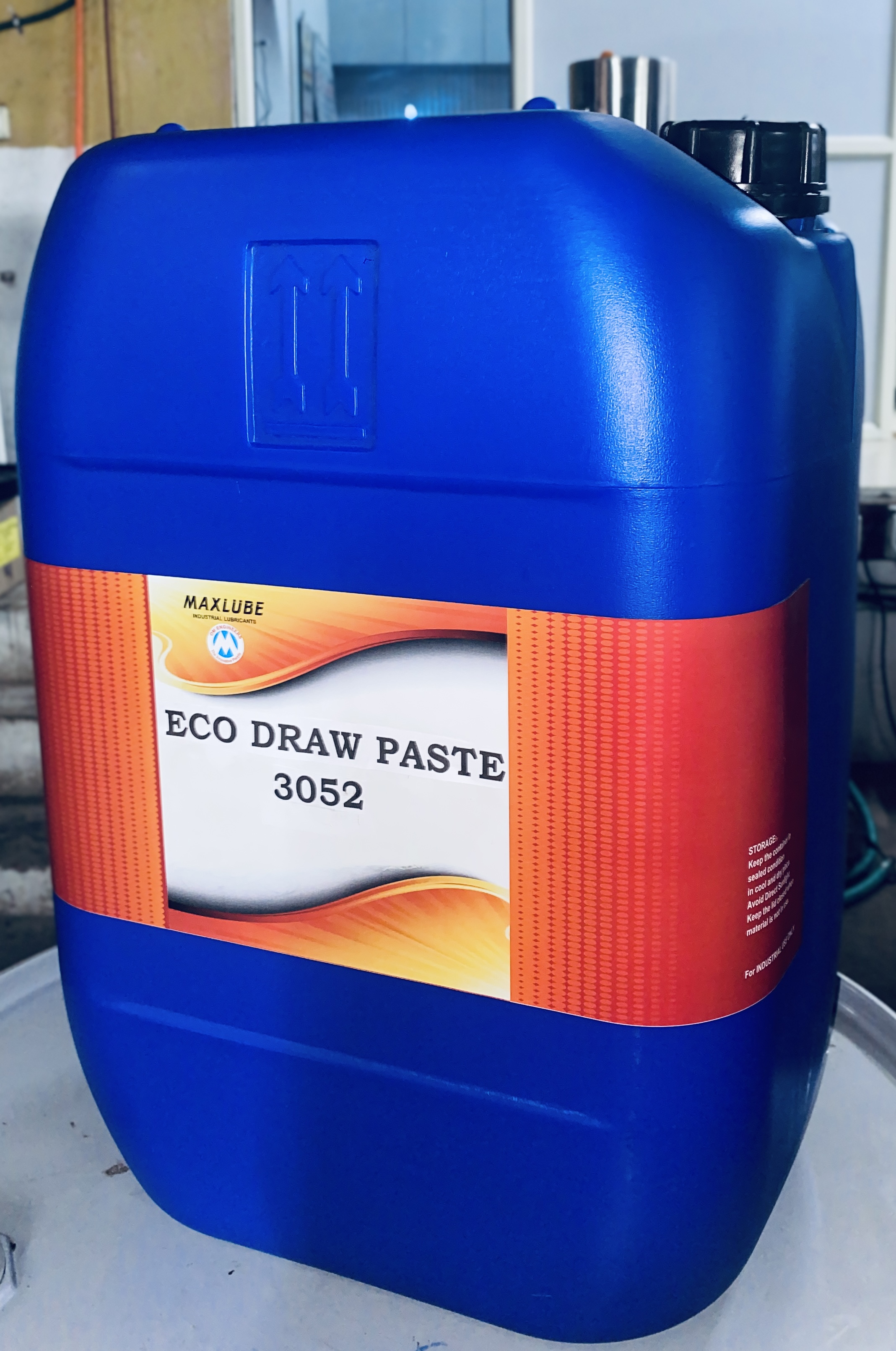

b) Eco Draw Paste 3052 –

– For Blanking, hole, drilling etc. Suitable for Ferrous metals and Aluminum. Drawing paste for metal is a lubricant used in metal drawing, a metalworking technique that involves pulling metal through a die or mold.

Drawing paste can be used for a variety of purposes, including:

Wire drawing: Used for drawing steel, iron, galvanized steel, staple, and copper plated wires

Deep drawing: Used for shaping steel, stainless steel, and aluminum, such as for containers, housings, and profile bending

Forming: Used for severe metal forming operations, such as cold heading, pressing, stamping, deep drawing, wire drawing, and forging

Drawing steel utensils: Used for drawing steel sinks, LPG cylinders, gas stoves, and automobile parts

Parameter Test Method Test Results
Color NA Off White
Density CTM 1.02
Soluble CTM Soluble in water.
Rust Test ASTM D665 Pass
d) Eco Bending Gel 3500 –

For Mandrel Lubrication - Tube bending operation. Eco bending gel is a lubricant used to bend and form metal tubes. It can be non-toxic, non-flammable, and environmentally friendly. These water based Gels eliminates the components cleaning operation. The component can easily welded in next operation.

Parameter Test Method Test Results
Color NA Dark Brown
Density CTM 1.02
Soluble CTM Soluble in water
Rust Test CTM Pass

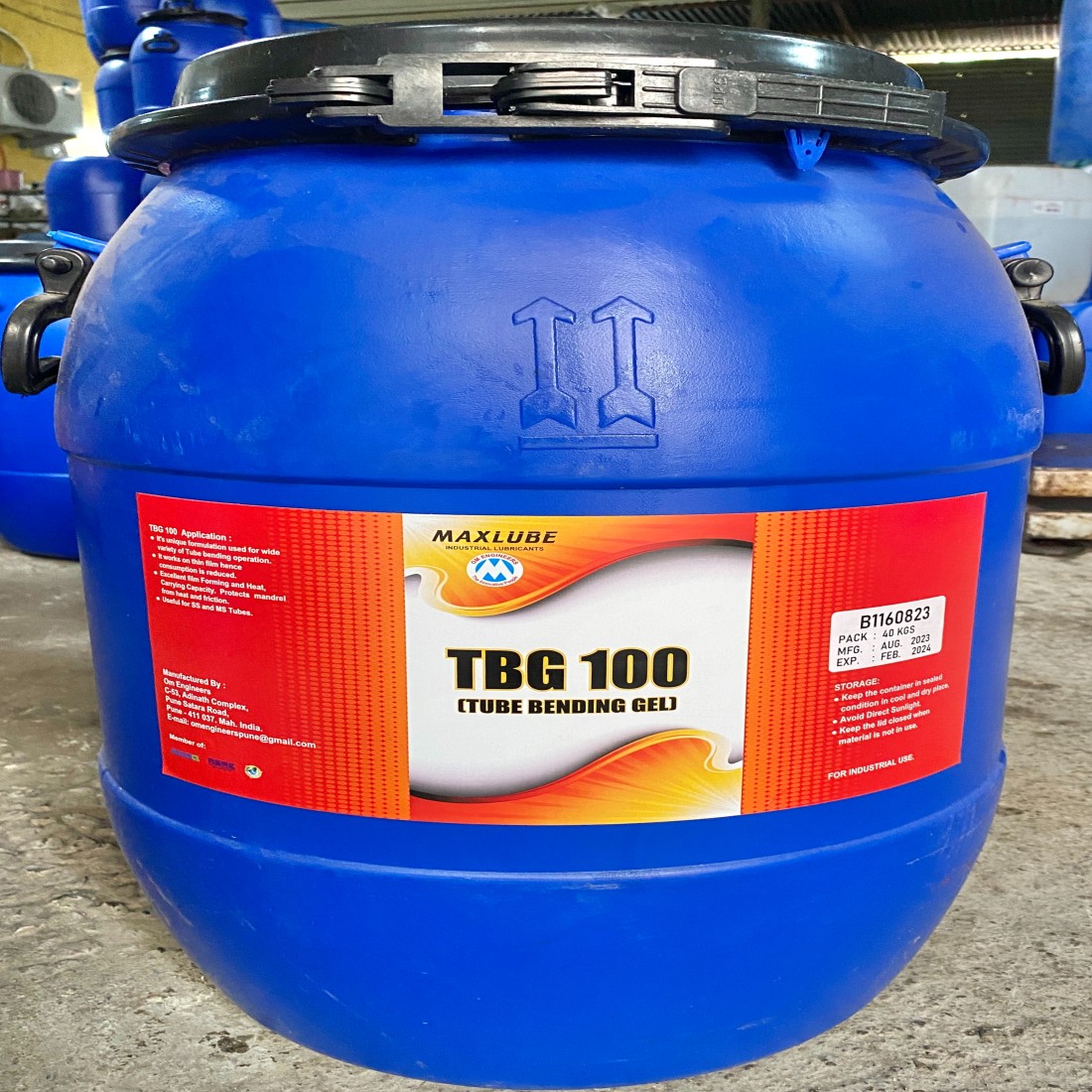

e) TBG 100 –

For Mandrel Lubrication – Tube Bending operation Tube bending gel is a lubricant used to bend and form metal tubes. It can be non-toxic, non-flammable, and environmentally friendly. These water based Gels eliminates the components cleaning operation. The component can easily welded in next operation.

Parameter Test Method Test Results
Color NA Brown
Density CTM 1.02
Soluble CTM Soluble in water
Rust Test CTM Pass
